Spiral Stack™ 03
-
Select for Price :
Description

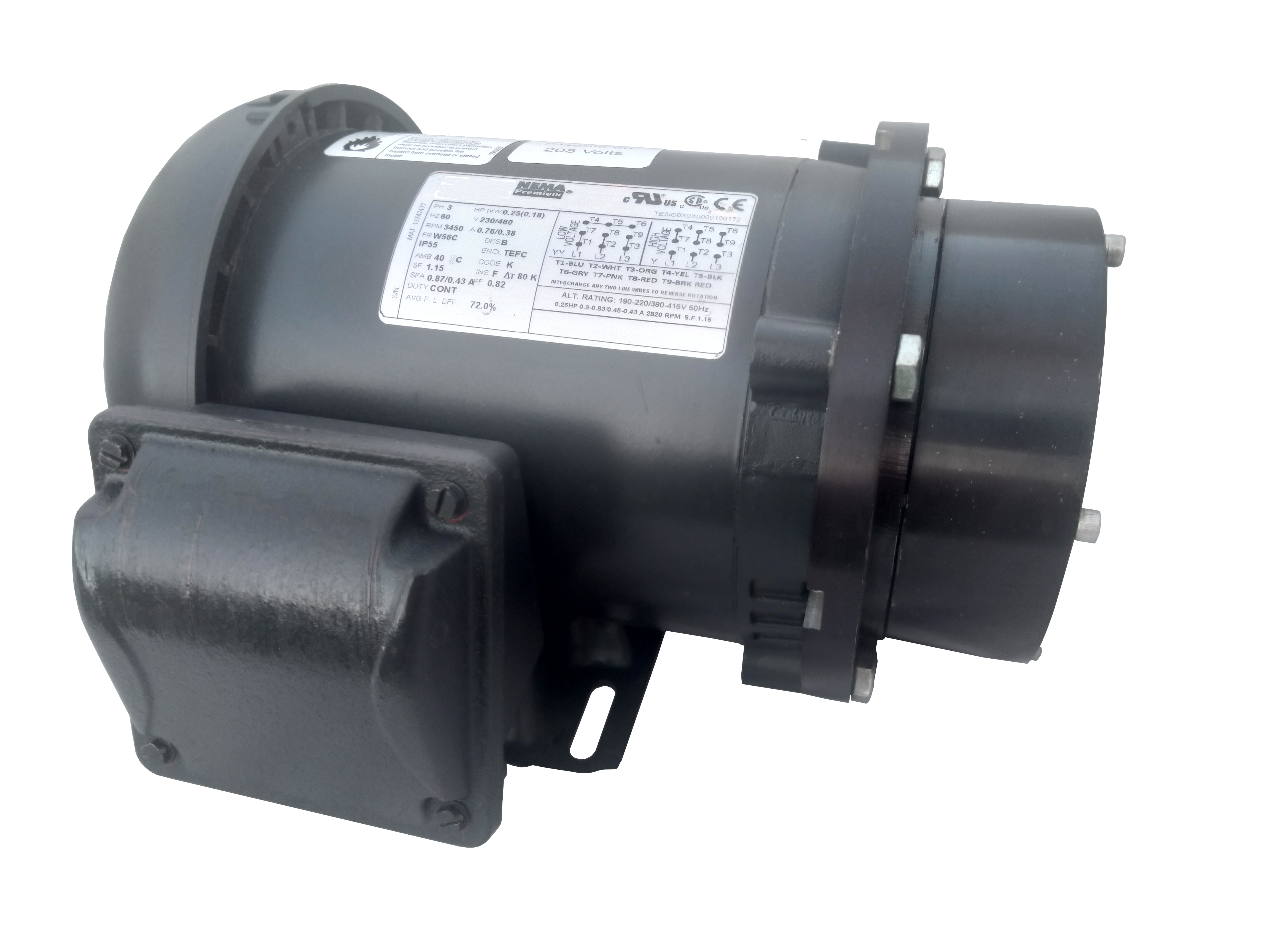

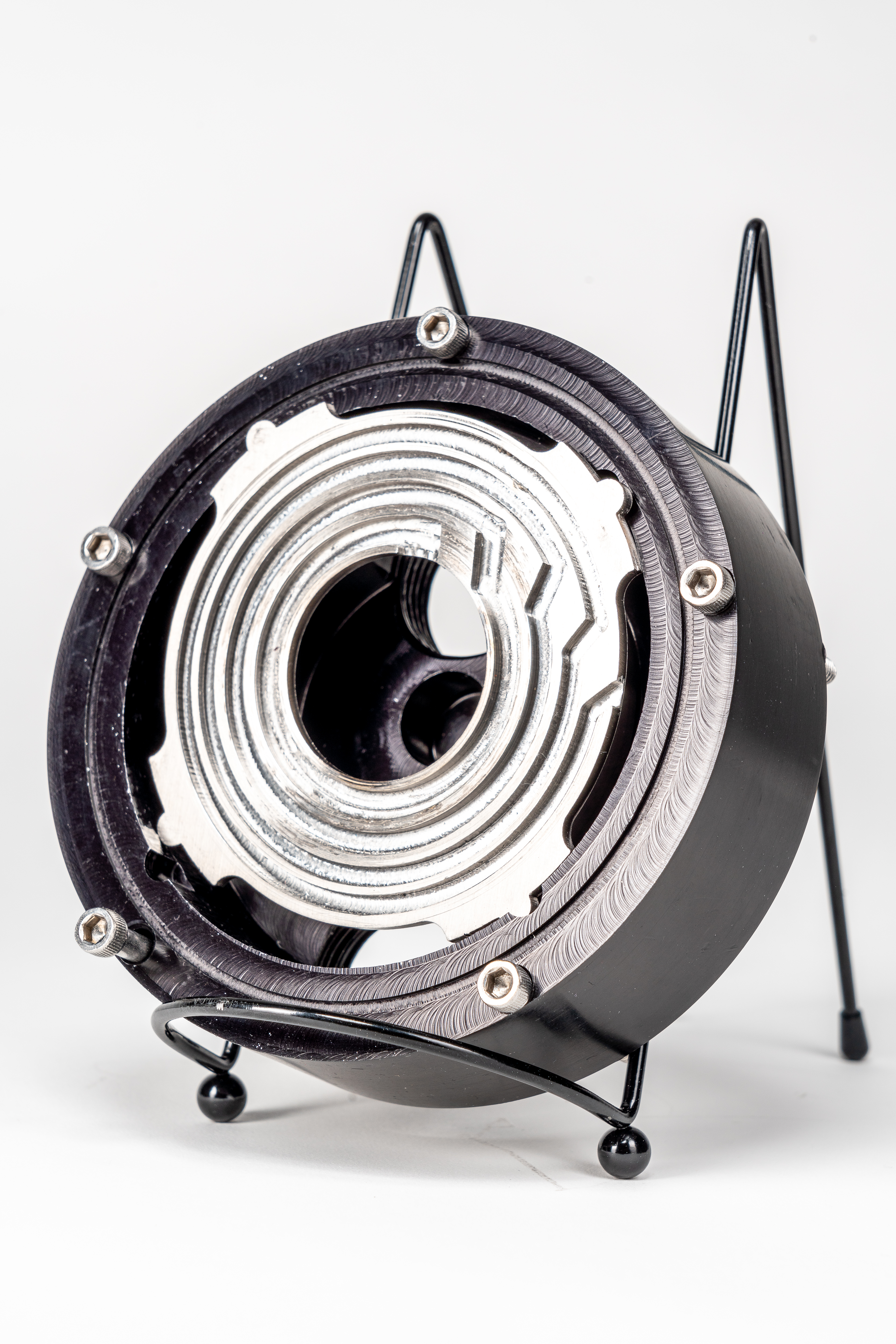

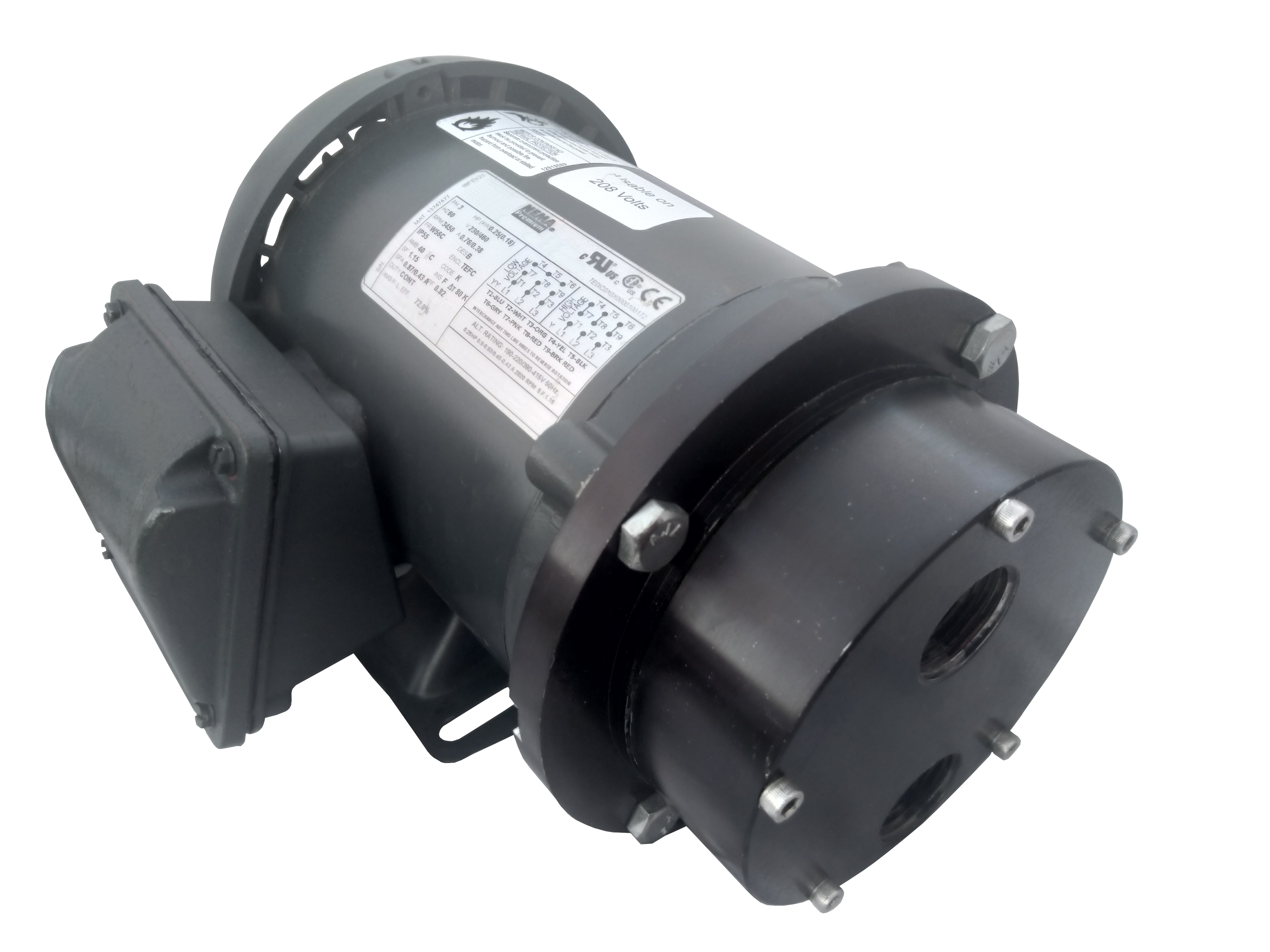

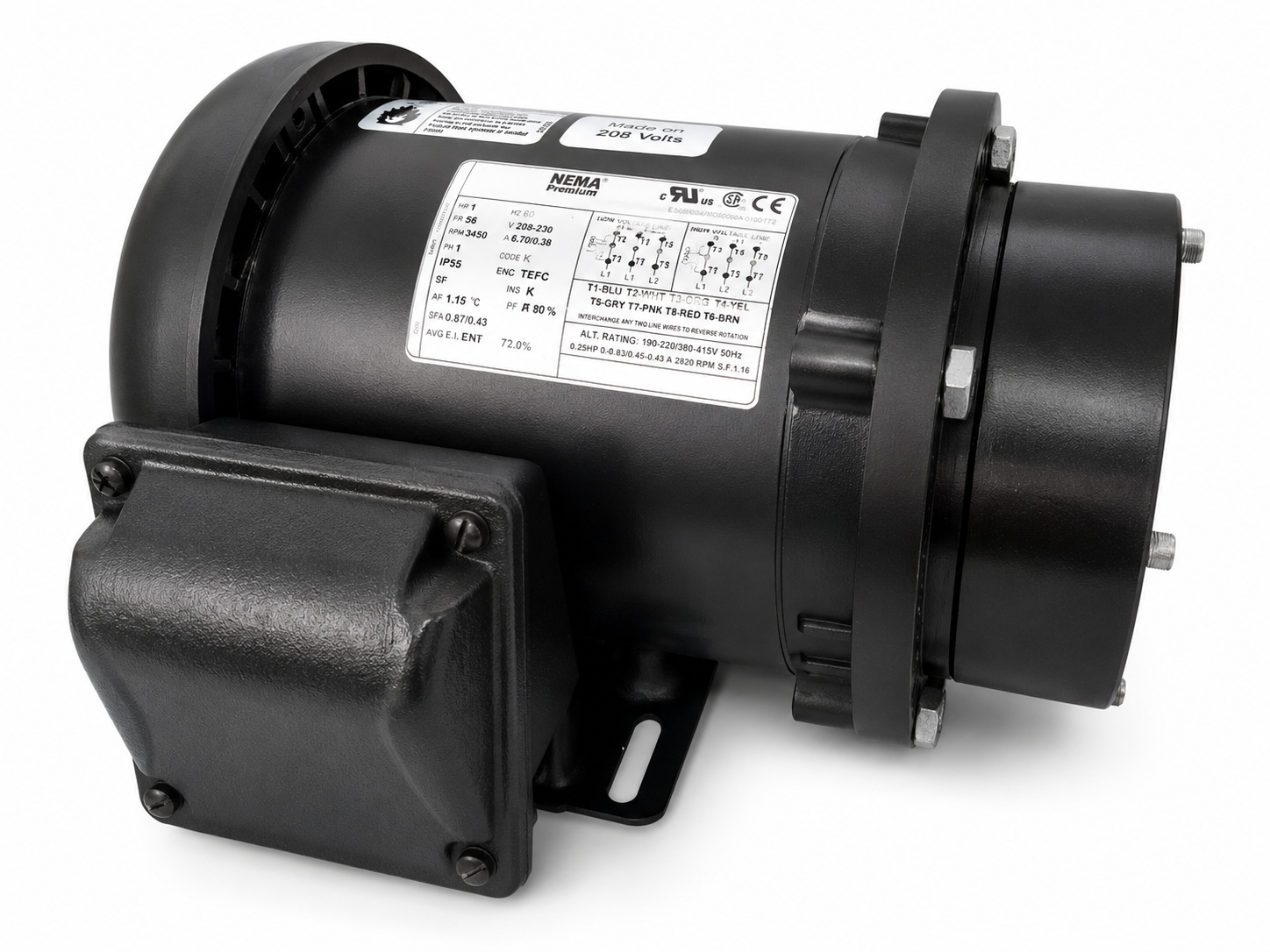

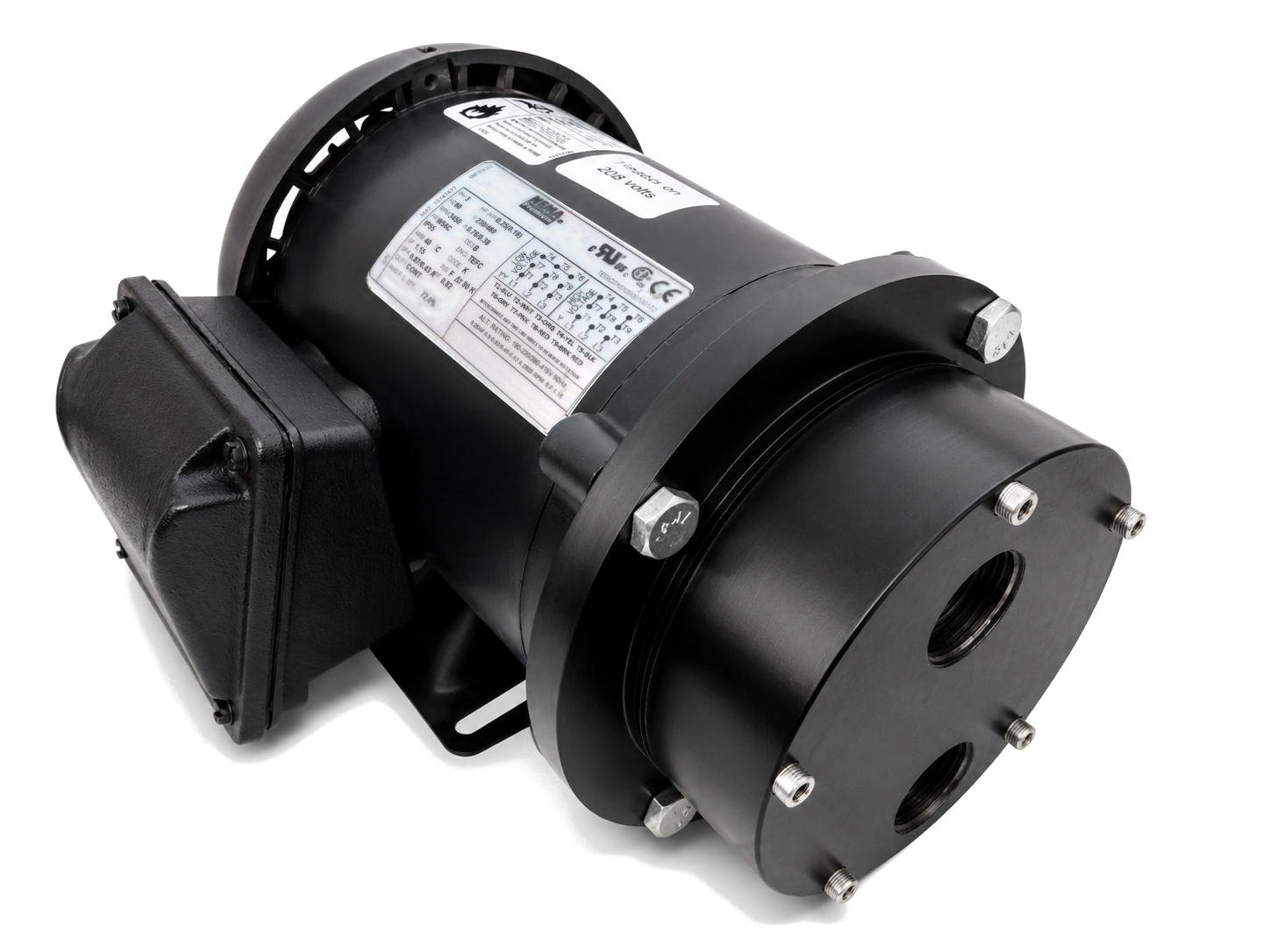

Spiral Stack™ 03 laminar channel, industrial pump.

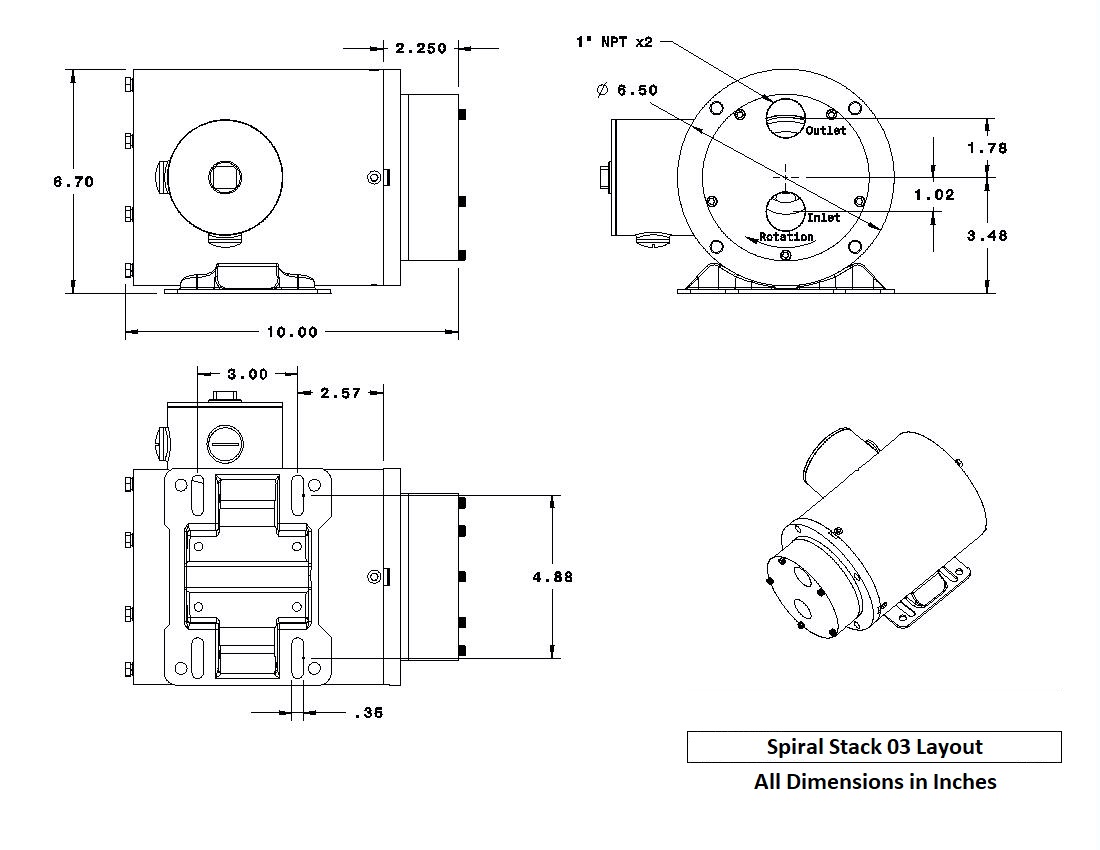

1" NPT inlet/outlet
1 GPM open flow, 40 ft max head pressure @ 1800 RPM.
2 GPM open flow, 135 ft max head pressure @ 3600 RPM.
3 GPM open flow, 170 ft max head pressure @ 5400 RPM.
Handles entrained solids to 1/16" and semi-solids to 1/8"
Includes close-coupled, severe-duty, washdown, industrial motor.
Reviews
There are yet no reviews for this product.
Related Products
Pump Stand
Use our fiberglass pump stand for lifting your Spiral Stack™ pump off of the ground or other structure. It prevents water pooling around the pump and isolates vibrations.
Rebuild Kit 03

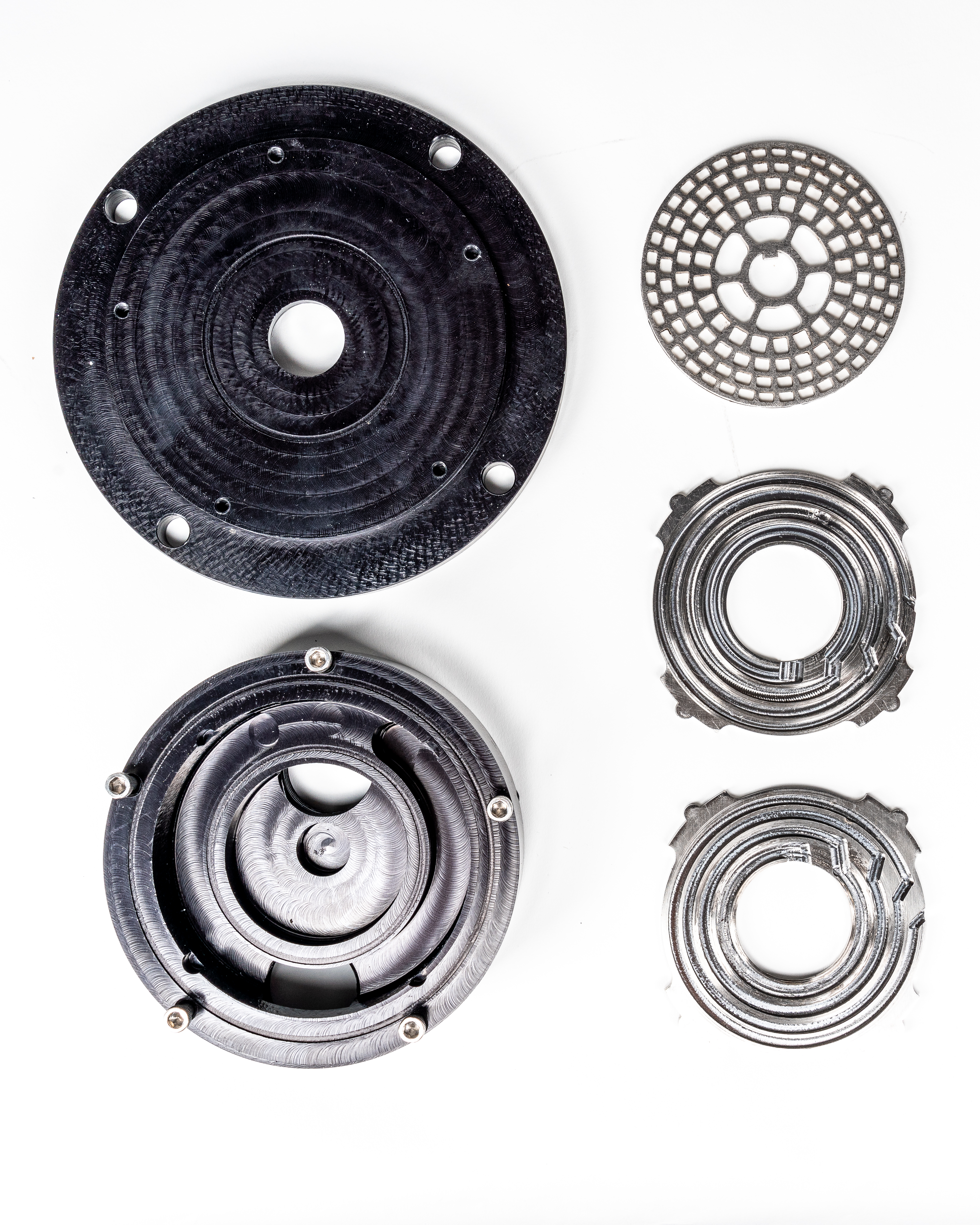

Rebuild your Spiral Stack™ 03 pump. Kit includes 1 body seal, 2 stator seals, 1 shaft seal, 2 stator discs, and fixed-torque socket driver. 4000 hour run time rated.
Flow Controller
Add our flow controller to the Spiral Stack's discharge port for precision metering of flow rates less than 1/2 GPM or to prevent backflow. This controller closes off flow when the pump is not in use and opens when the pump powers on. Once the flow rate is set, a locknut prevents unwanted adjustments. 1/4" FNPT discharge.
Check Valve
Our compact brass check valves allow your Spiral Stack™ pump to dispense into pressurized lines or processes without backflow. These valves thread directly into the discharge port and provide a 1" FNPT connection for your piping.
