Spiral Stack™ 15
-
Select for Price :
Description

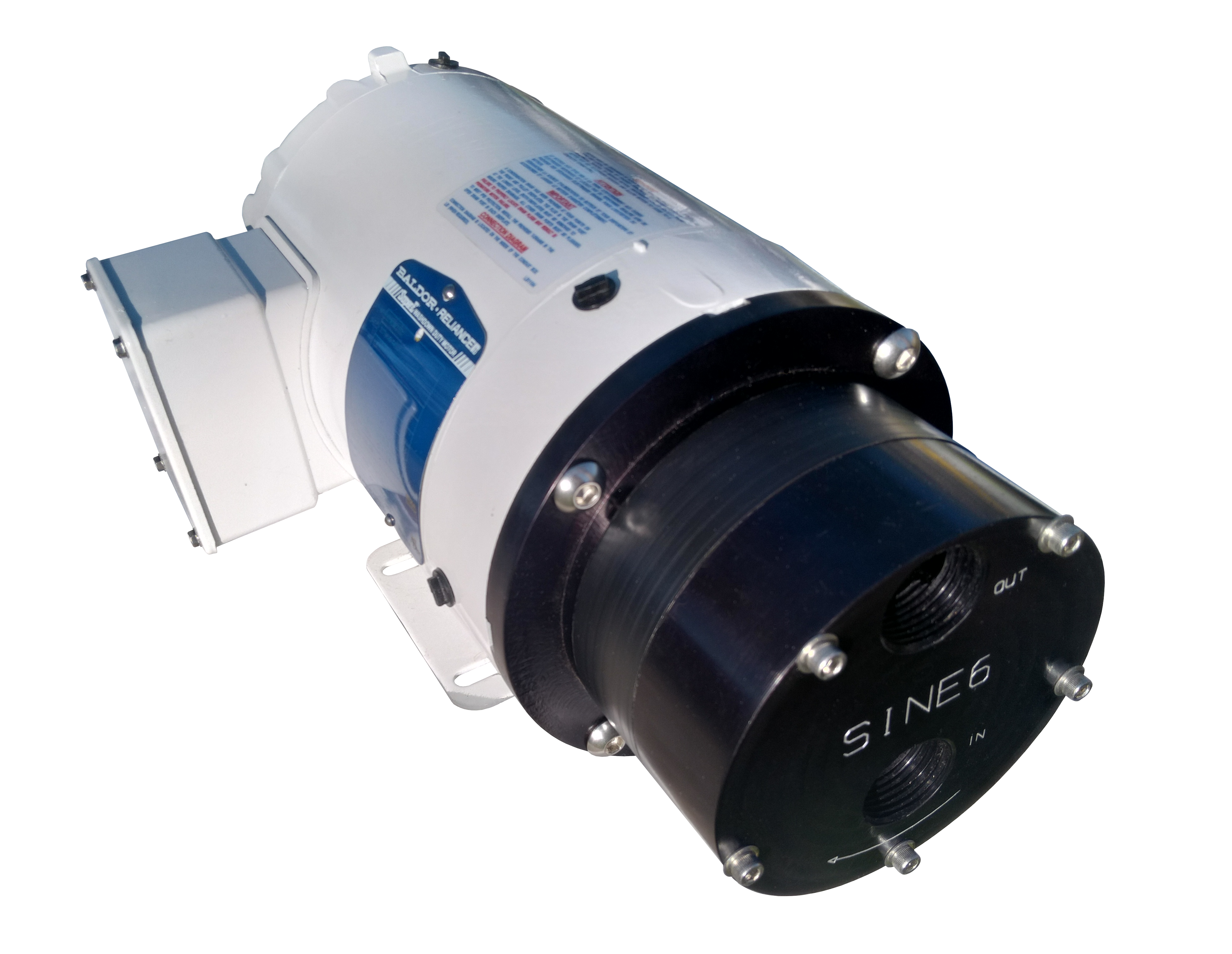

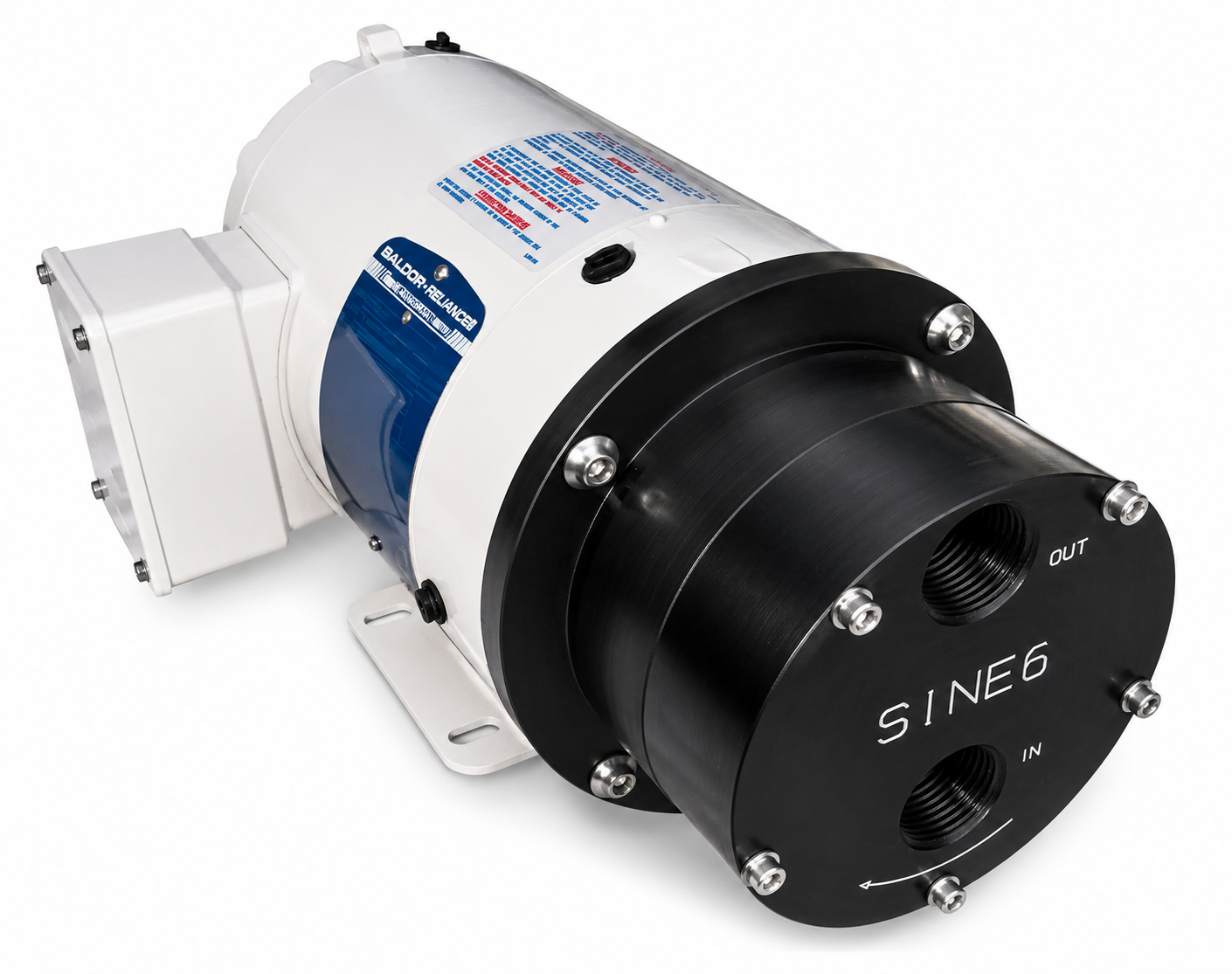

Spiral Stack™ 15 laminar channel industrial pump.

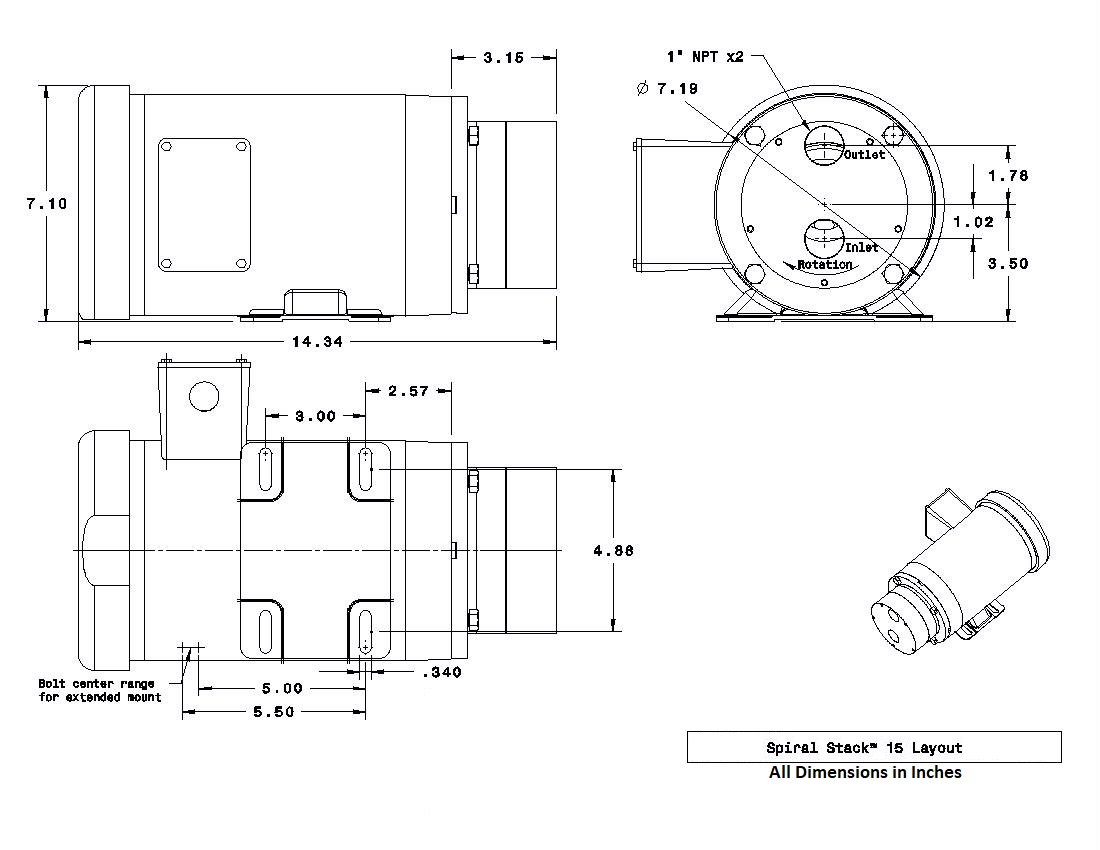

1" NPT inlet/outlet
5 GPM open flow, 40 ft max head pressure @ 1800 RPM.
10 GPM open flow, 135 ft max head pressure @ 3600 RPM.
15 GPM open flow, 170 ft max head pressure @ 5400 RPM.
Handles entrained solids to 1/8" and semi-solids to 1/4"

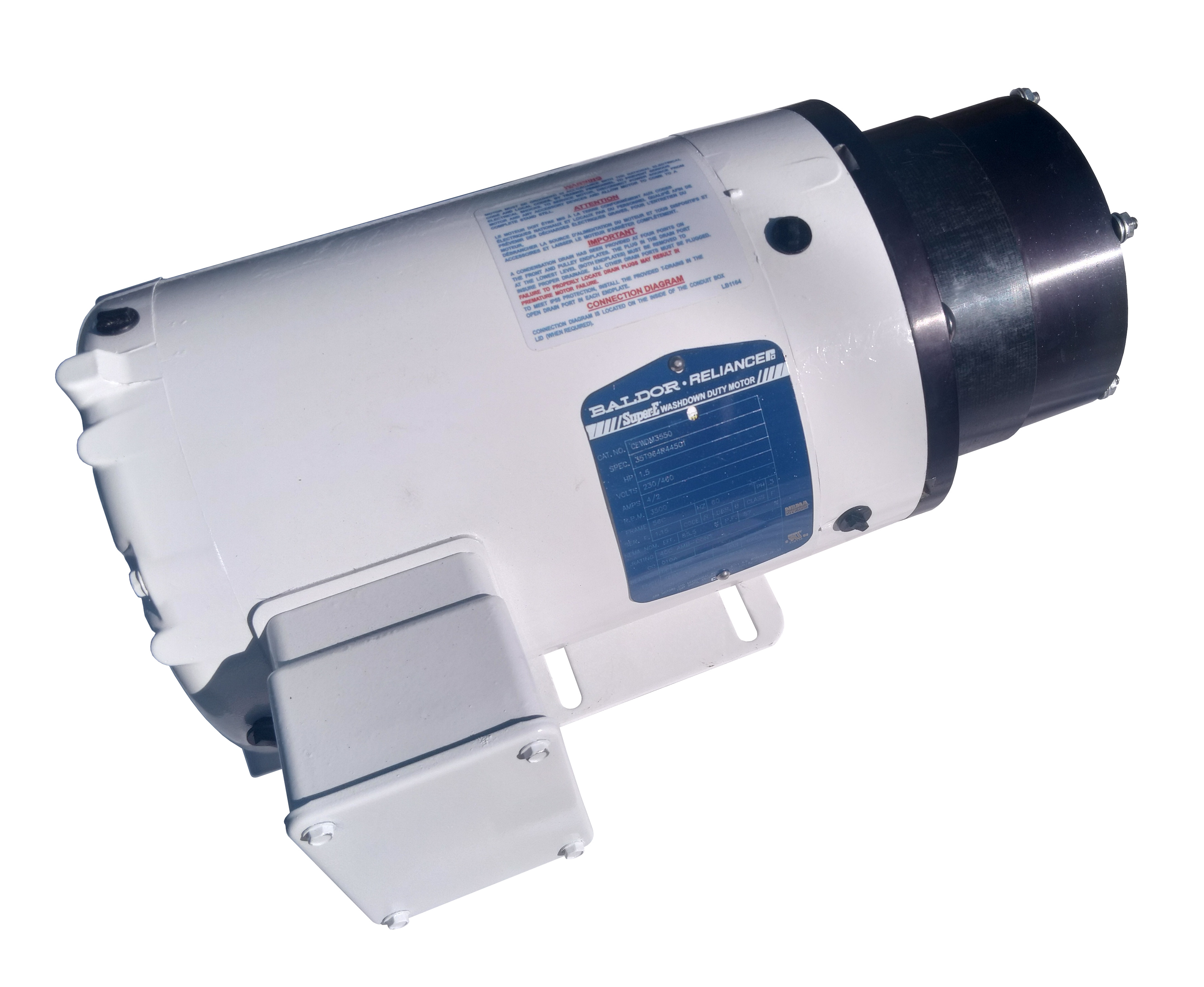

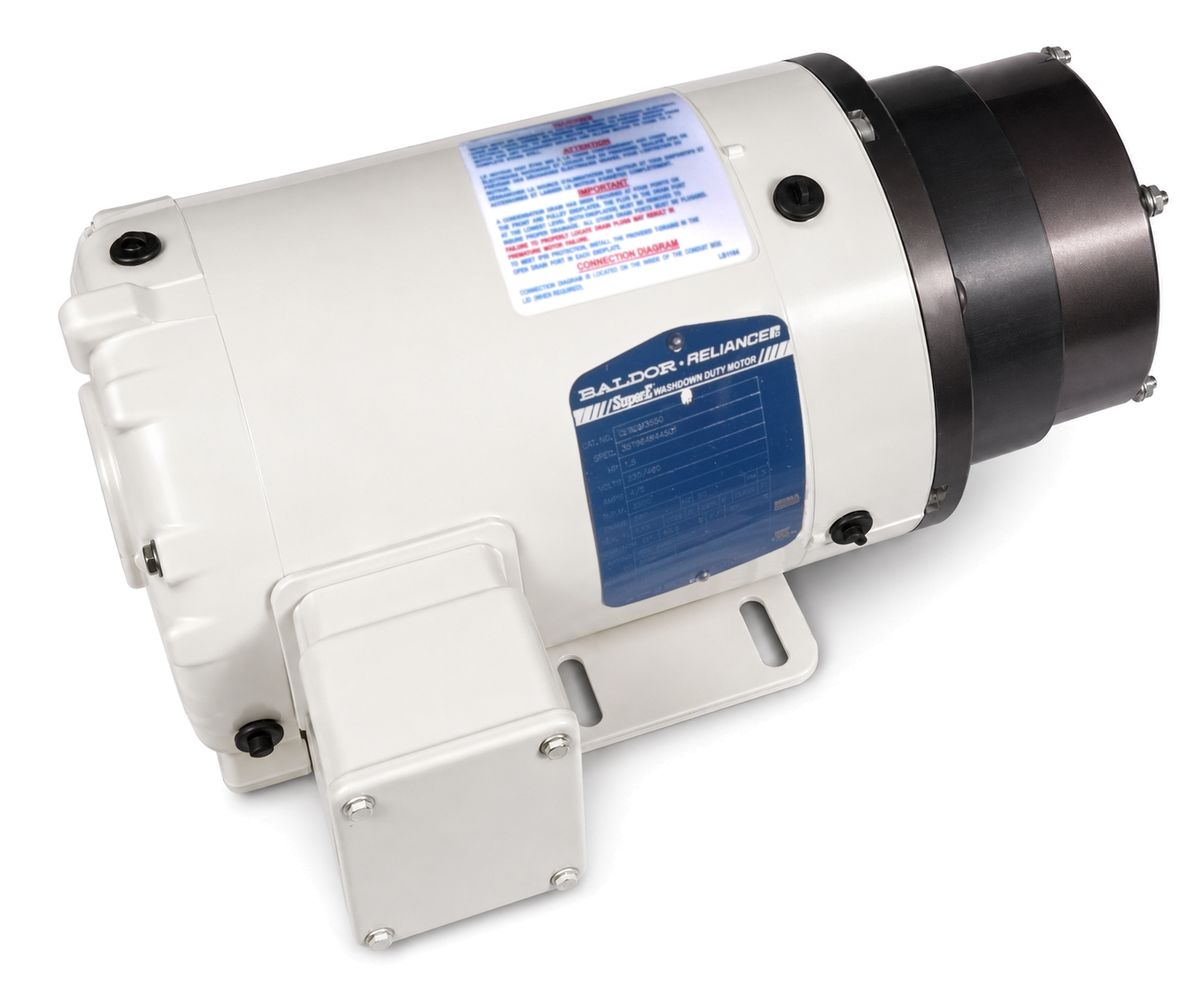

Includes close-coupled, severe-duty, washdown, industrial motor.
Reviews
There are yet no reviews for this product.
Related Products
Pump Stand
Use our fiberglass pump stand for lifting your Spiral Stack™ pump off of the ground or other structure. It prevents water pooling around the pump and isolates vibrations.
Check Valve
Our compact brass check valves allow your Spiral Stack™ pump to dispense into pressurized lines or processes without backflow. These valves thread directly into the discharge port and provide a 1" FNPT connection for your piping.
Rebuild Kit 15

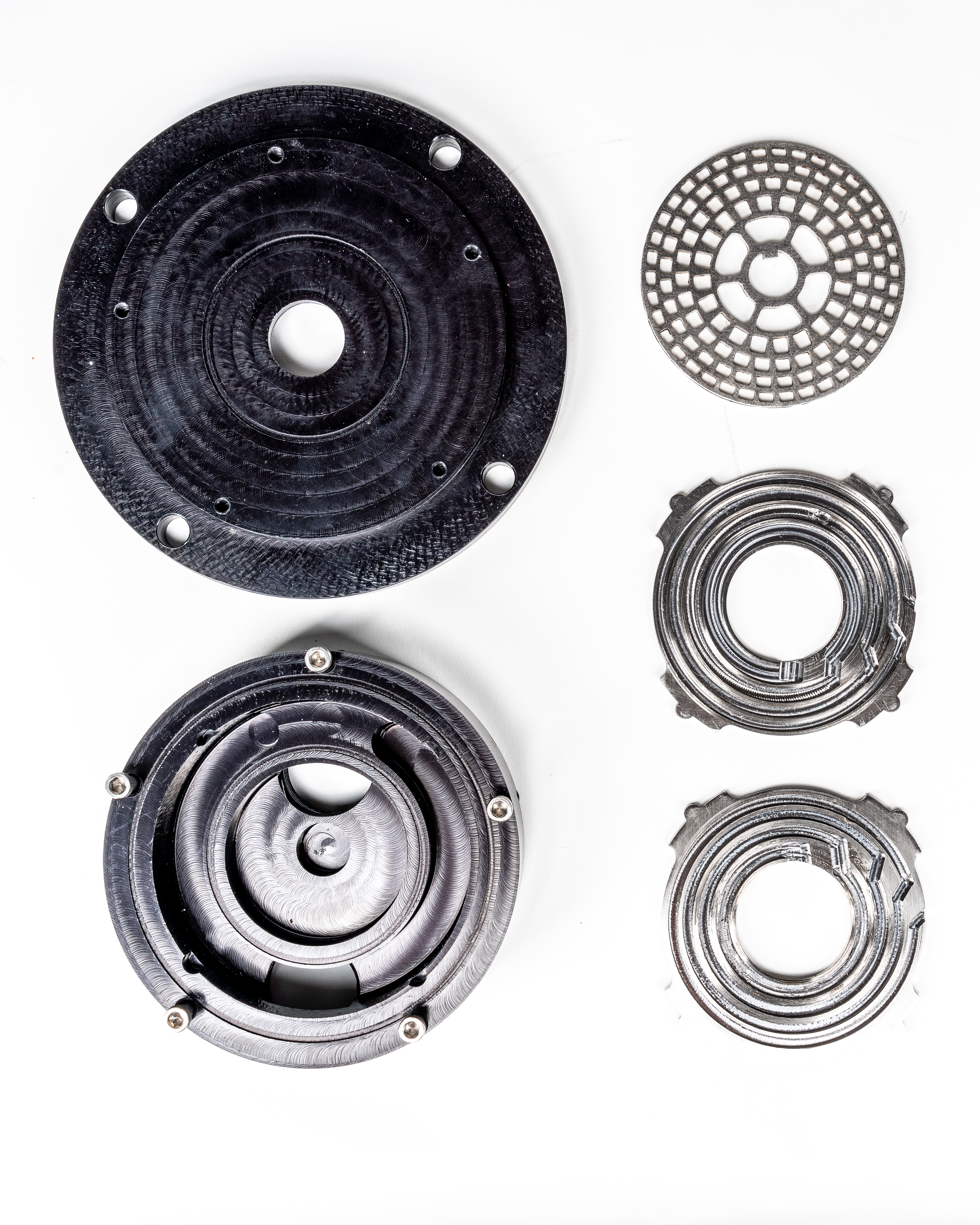

Rebuild your Spiral Stack™ 15 pump. Kit includes 2 body seals, 2 stator seals, 1 shaft seal, 3 stator discs, and fixed-torque socket driver. 4000 hour run time rated.
